Get Started
Build
Standalone Mode
这个模式用于尽量剥离 RocksDB 相关代码逻辑,加快编译调试速度
目前暂时不可用于读写性能测试。
Fixme:
- Zone close failed
- CURRENT file content error when using simple raid0
Plugin Mode
原 ZenFS 项目构建方式。
# 从我们 Fork 的项目 Clone,并且同时同步子项目
git clone https://github.com/RethinkFS/rocksdb -b aquafs --recursive
此时 plugin/zenfs
和 plugin/aquafs
被作为子项目的形式 checkout 到对应路径,二者是地位等同的 RocksDB 插件,通过 fs_uri
指定。
从命令行构建:
# 注意 Configurate 时候需要的参数
cmake -B build -S . -DROCKSDB_PLUGINS="AquaFS zenfs" -DWITH_SNAPPY=1 -DAQUAFS_EXPORT_PROMETHEUS=1 -DWITH_LIBURING=OFF
# 构建
cmake --build build

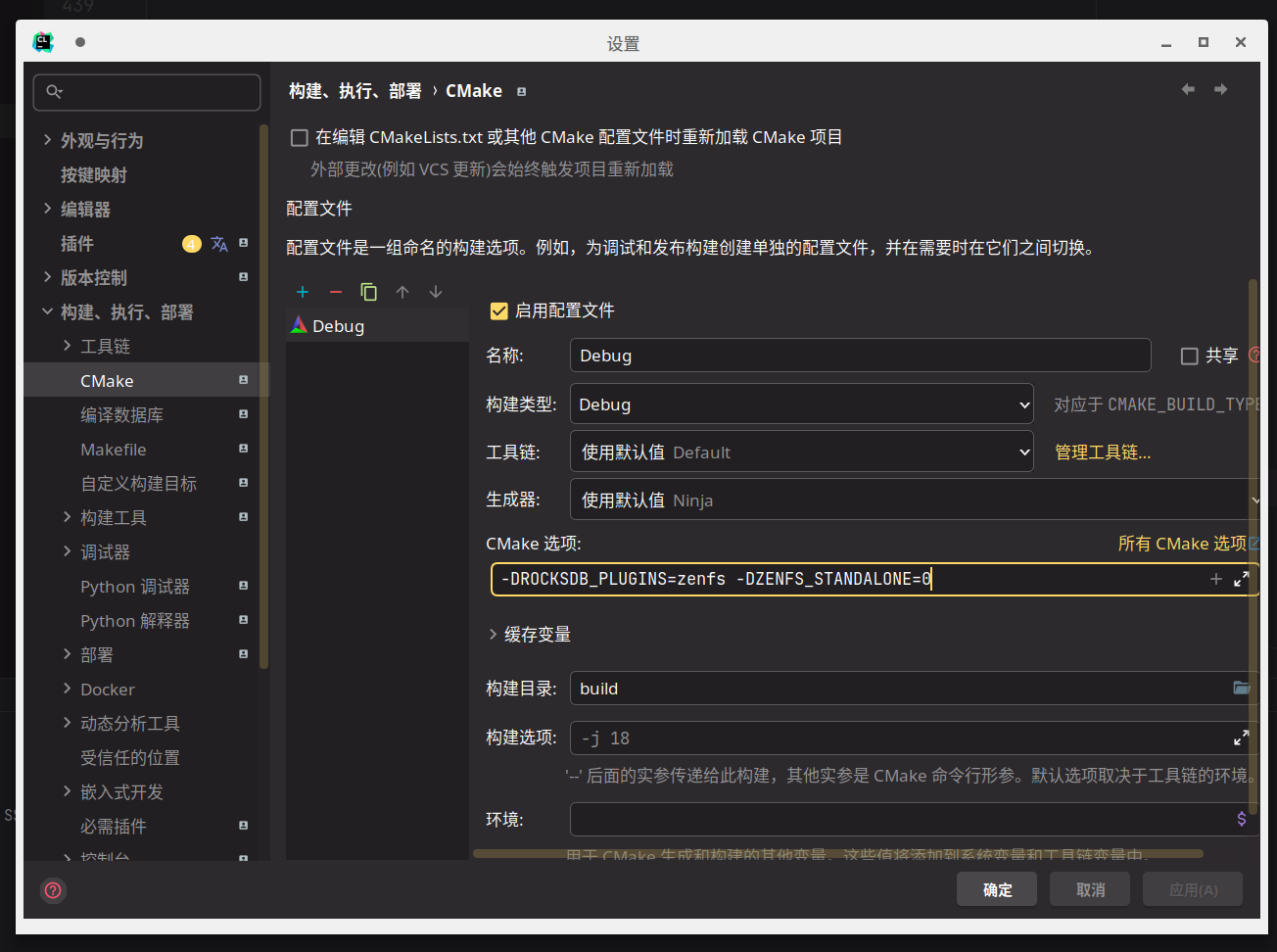

在 IDEA 中构建:
构建 db_bench
用于性能测试:
# 命令行构建,需要额外设置参数 DEBUG_LEVEL=0 以及 数据收集用 prometheus
cmake -B build -S . \
-DROCKSDB_PLUGINS="AquaFS zenfs" -DWITH_SNAPPY=1 -DAQUAFS_EXPORT_PROMETHEUS=1 -DWITH_LIBURING=OFF
# 构建
cmake --build build
# 创建两个 nullblk 设备:nullb0 nullb1
sudo ./plugin/aquafs/tests/nullblk/nullblk-zoned.sh 4096 32 0 64
sudo ./plugin/aquafs/tests/nullblk/nullblk-zoned.sh 4096 32 0 64
cd build
# 对单个设备测试
## 创建文件系统
mkdir -p /tmp/aquafs
sudo ./plugin/aquafs/aquafs mkfs --zbd nullb0 --aux-path /tmp/aquafs
## 跑分
sudo ./db_bench --fs_uri=aquafs://dev:nullb0 \
--benchmarks=fillrandom --use_direct_io_for_flush_and_compaction --use_stderr_info_logger
# 对两个设备的 RAID 测试
## 创建文件系统
mkdir -p /tmp/aquafs
sudo ./plugin/aquafs/aquafs mkfs --raids=raida:dev:nullb0,dev:nullb1 --aux-path /tmp/aquafs
## 跑分
sudo ./db_bench --fs_uri=aquafs://raida:dev:nullb0,dev:nullb1 \
--benchmarks=fillrandom --use_direct_io_for_flush_and_compaction --use_stderr_info_logger
或者在 IDEA 中添加 -DDEBUG_LEVEL=0
然后选择 db_bench
目标进行构建。
db_bench
的一些有用的参数:
--fs_uri=aquafs://raida:dev:nullb0,dev:nullb1
用于指定测试中的存储文件系统。
aquafs://
则为使用我们修改后的文件系统,zenfs://
则为原文件系统。
--benchmarks=fillrandom
选择需要运行的测试。可用的测试:
"fillseq," "fillseqdeterministic," "fillsync," "fillrandom," "filluniquerandomdeterministic," "overwrite," "readrandom," "newiterator," "newiteratorwhilewriting," "seekrandom," "seekrandomwhilewriting," "seekrandomwhilemerging," "readseq," "readreverse," "compact," "compactall," "flush," "compact0," "compact1," "waitforcompaction," "multireadrandom," "mixgraph," "readseq," "readtorowcache," "readtocache," "readreverse," "readwhilewriting," "readwhilemerging," "readwhilescanning," "readrandomwriterandom," "updaterandom," "xorupdaterandom," "approximatesizerandom," "randomwithverify," "fill100K," "crc32c," "xxhash," "xxhash64," "xxh3," "compress," "uncompress," "acquireload," "fillseekseq," "randomtransaction," "randomreplacekeys," "timeseries," "getmergeoperands,", "readrandomoperands," "backup," "restore"
--use_direct_io_for_flush_and_compaction
当使用 DirectIO 的时候,数据请求将不会经过 Kernel,而是直接访问设备,能够有效降低访问延迟,提高带宽。
--use_stderr_info_logger
将
stderr
作为logger
的输出。
Source
项目组织方式为多层 git submodule,当编辑内层 submodule 内容时如果需要同步 submodule 状态需要逐层向上提交。
